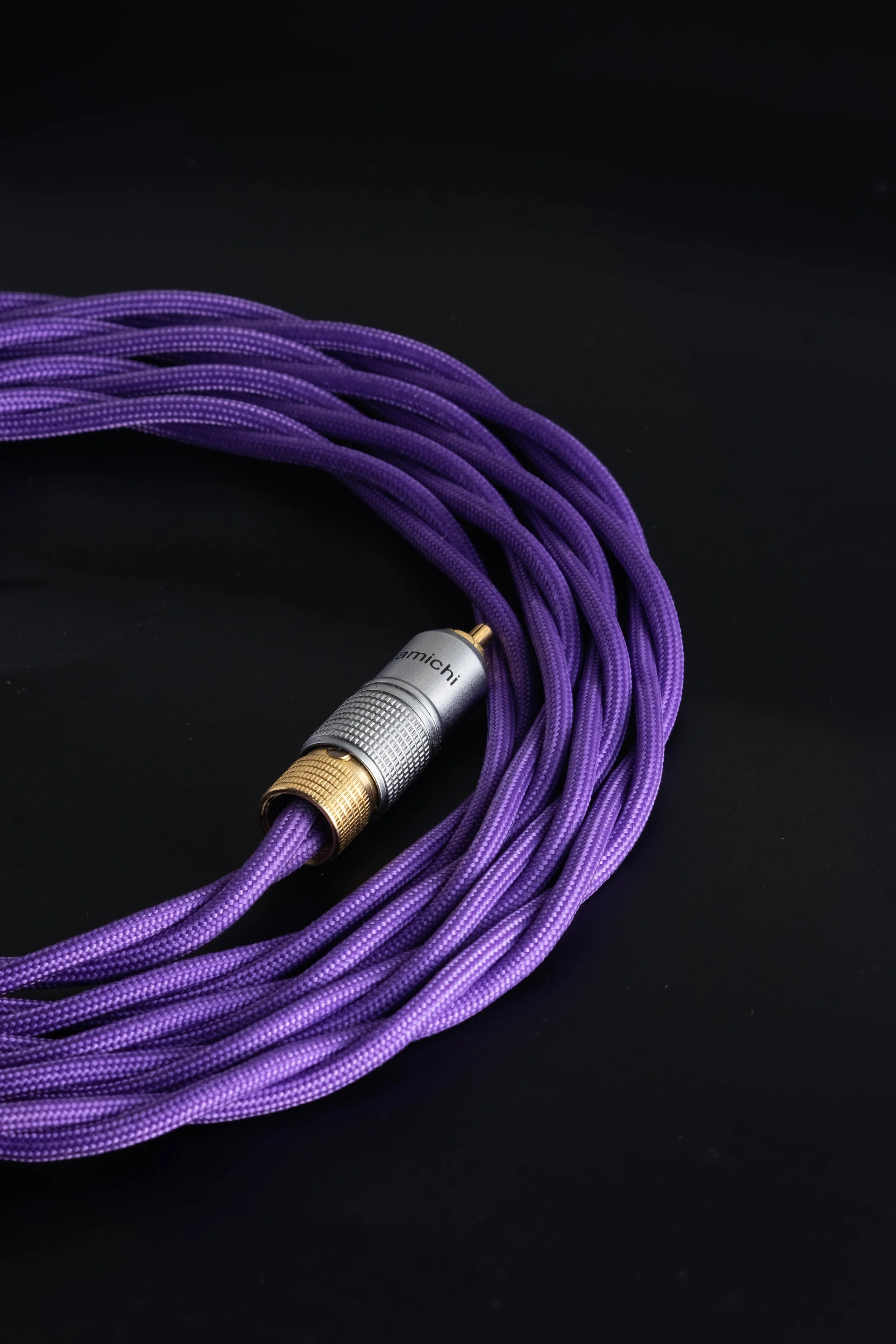

Custom Litz RCA II
Designed with the audiophile in mind. Our cables feature a pure silver conductor that delivers pristine and detailed sound reproduction, and is expertly shielded with a silver-plated copper shielding that covers 100% of the conductor. The result is a clean, interference-free signal that faithfully represents your music as it was intended to be heard. These cables are built to last with high-quality materials and expert craftsmanship. With their sleek and elegant design, our version 2 Litz RCA cables will elevate your audio system to the next level. Experience the ultimate in sonic clarity and precision with our top-of-the-line cables.
Designed with the audiophile in mind. Our cables feature a pure silver conductor that delivers pristine and detailed sound reproduction, and is expertly shielded with a silver-plated copper shielding that covers 100% of the conductor. The result is a clean, interference-free signal that faithfully represents your music as it was intended to be heard. These cables are built to last with high-quality materials and expert craftsmanship. With their sleek and elegant design, our version 2 Litz RCA cables will elevate your audio system to the next level. Experience the ultimate in sonic clarity and precision with our top-of-the-line cables.
Designed with the audiophile in mind. Our cables feature a pure silver conductor that delivers pristine and detailed sound reproduction, and is expertly shielded with a silver-plated copper shielding that covers 100% of the conductor. The result is a clean, interference-free signal that faithfully represents your music as it was intended to be heard. These cables are built to last with high-quality materials and expert craftsmanship. With their sleek and elegant design, our version 2 Litz RCA cables will elevate your audio system to the next level. Experience the ultimate in sonic clarity and precision with our top-of-the-line cables.
Design of the Wire
The design process for this wiring took over half a year, involving multiple prototypes, with the ultimate goal of creating a transparent, crystal clear wire. To achieve this, Litz technology was employed to minimize skin effect and proximity effect losses in conductors at frequencies up to approximately 1 MHz. The signal wiring consists of 39 strands of superfine Type 1 Litz pure silver UPOCC, which was selected for its exceptional quality. This conductor is encased in a layer of fluoropolymer tetrafluoroethylene, chosen for its superior electrical properties and low dielectric constant of 2.1, which remains consistent across temperature and frequency variations. For shielding, a silver-plated high purity copper was deemed to be as effective as pure silver, and was used for its 100% coverage of the signal wire. The silver-plated 6N (99.9999X%) copper consists of 89 strands wrapped around the signal wire, yielding a total cross-sectional area of 15AWG. The individual strands are coated in an insulating enamel and are further insulated by a layer of silicone.
Cable Design
Material: Monocrystalline Pure Silver
Insulator: PTFE/SILICONE
Core Structure: Inner core Litz type 1 - UP-OCC Monocrystalline (39*0.08) & Outer layer 6N OCC Silver plated pure copper (89*0.08)
Connectors Specification
Oyaide -
Pins Material: 4N Pure Silver (99.99X)
Body Material: CNC machined brass
Insulation: PTFE
-
Custom Tellurium -
Pins Material: Tellurium Copper (Silver plated)
Body material: Chrome plated aluminium alloy
Insulation: PTFE
-
Viablue-
Pins Material: Gold plated brass
Body material: Aluminium
-
Furutech -
Pins Material: OCC pure copper 24k gold plated
Body Material: Copper alloy
Insulation: Teflon
Anti-Magnetism Treatment FURUTECH Alpha α
-
WBT -
Pins Material: Pure Silver Platinum plated
Body Material: Pure Brass
Insulation: reinforced glass fiber
-
KLEI -
Pins Material: Pure Copper Silver plated
Body Material: Glass-filled thermoplastic polymer
Insulation: Teflon
